Capsule Homes

V9

Life, framed by the view.

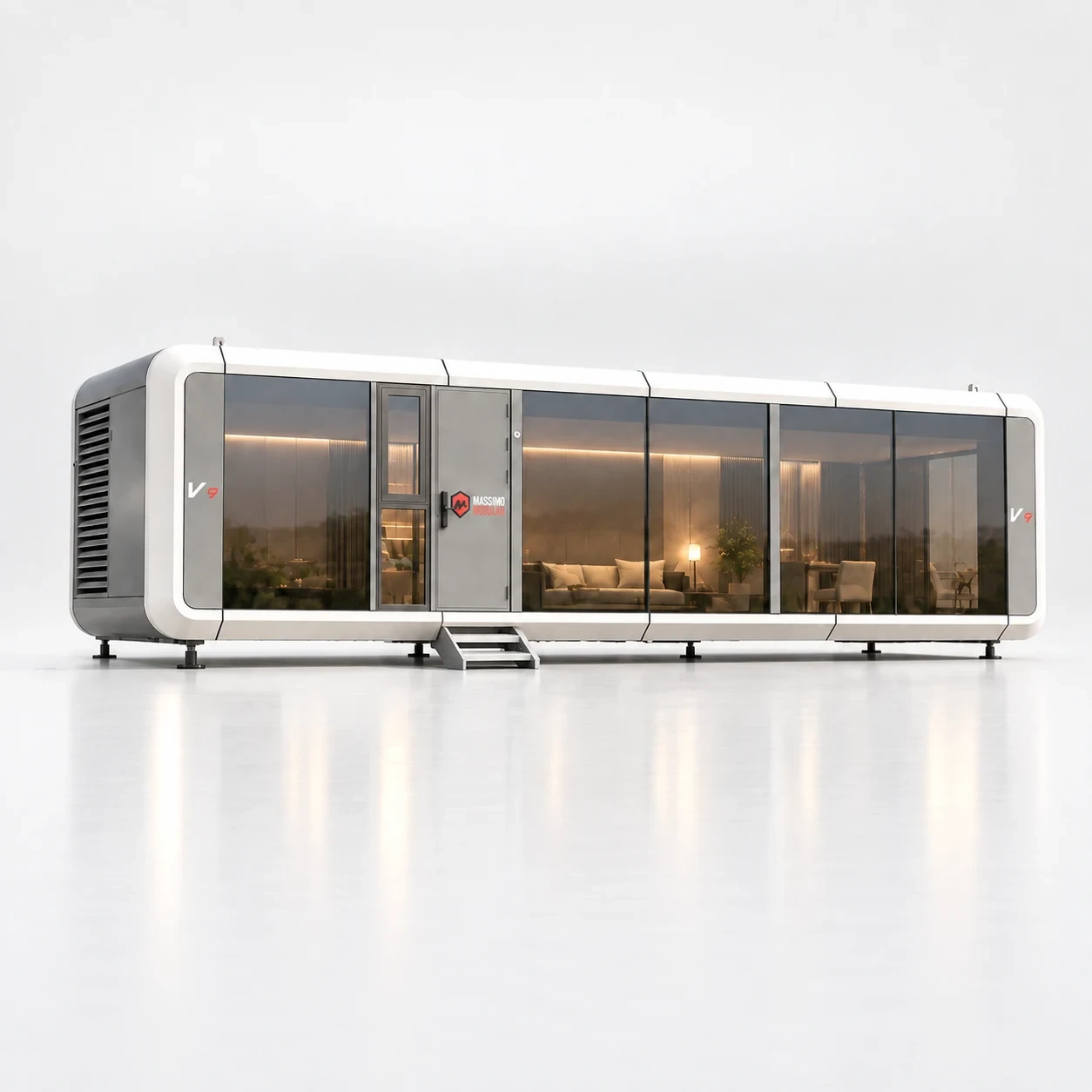

V9 product reference

Images show design and configuration references. Confirm finishes, furnishings and included equipment in your quote.

Key Specifications

Layout
Sleeping area with wardrobe divider · 1 bathroom · kitchen · living area
Reference area
390 sq ft
Weight
23,800 lb
Electrical Service
150 A
Exterior length × width
37′ 4 7/8″ × 10′ 9 7/8″

Life, framed by the view. Layout: Sleeping area with wardrobe divider · 1 bathroom · kitchen · living area. Approx. 390 sq ft. Visit our Garland, Texas showroom or request pricing.

Pricing varies by model, configuration, delivery location and site requirements.

Call for Pricing 877.983.7735 ↗

Electrical Specifications

Sum of listed reference loads. Two unrated circuits are excluded; confirm actual equipment input for your order.

Voltage
120/240V AC
Frequency
60Hz
Phase
Single-Phase, Split-Phase
Connection
4-Wire (L1/L2/N/G)
Sum of listed reference loads
35.66 kW
Electrical service amperage
150 A

Project Documents

Confirm the current equipment, dimensions and supply scope with your quote.

Functional and U.S. dimensioned floor plans · PDFFunctional floor plan · PDFHigh-resolution functional floor plan · PNGElectrical distribution reference · PDFFoundation and utility connection reference · U.S. dimensions · PDFConfiguration and layout · PDF

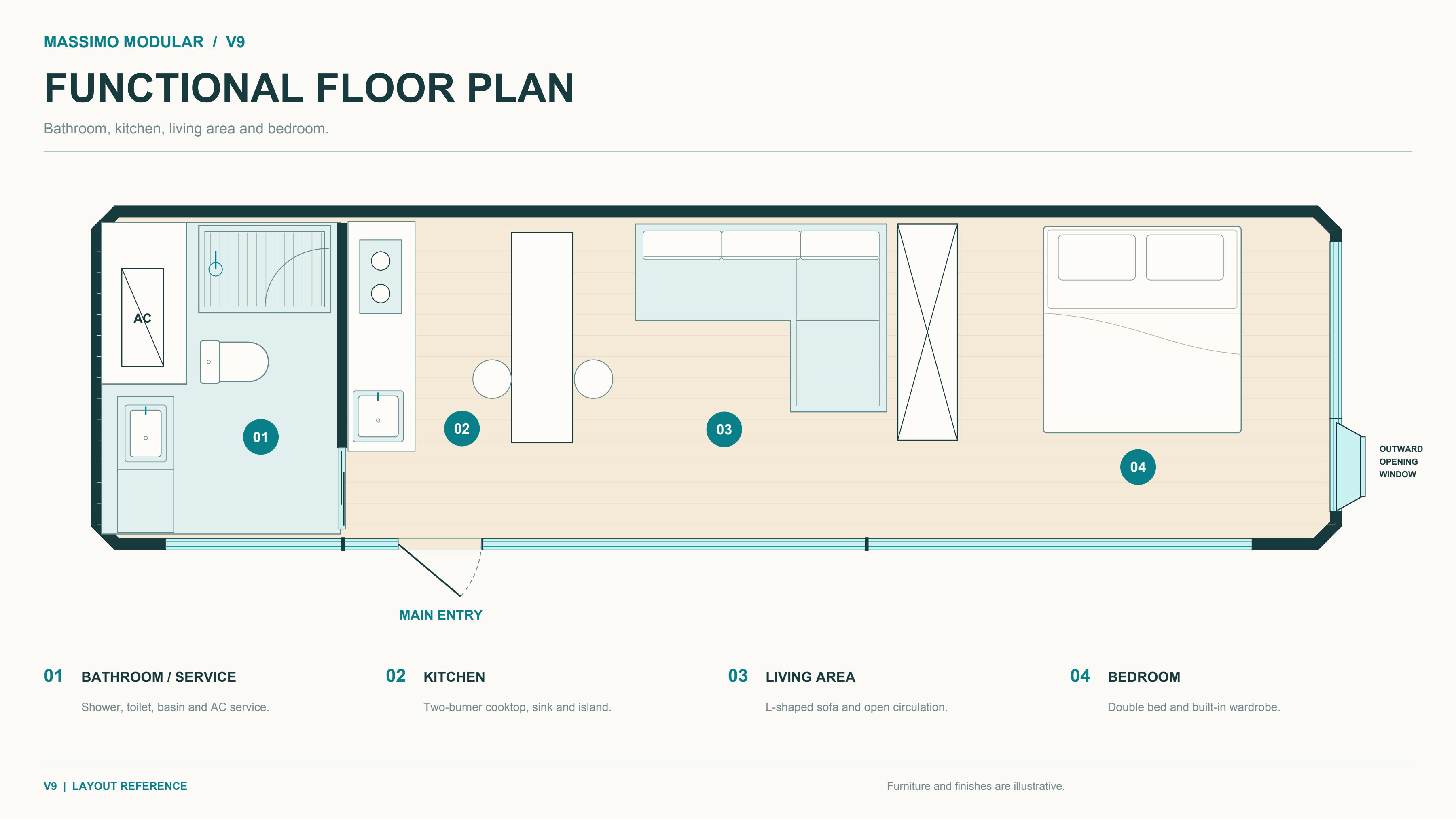

Floor Plan

Current selected layout. Functional and U.S. dimensioned drawings are provided separately. Confirm the final configuration and included items with your quote.

V9 reference floor plan
